Fixing Sony A7 LCD delamination

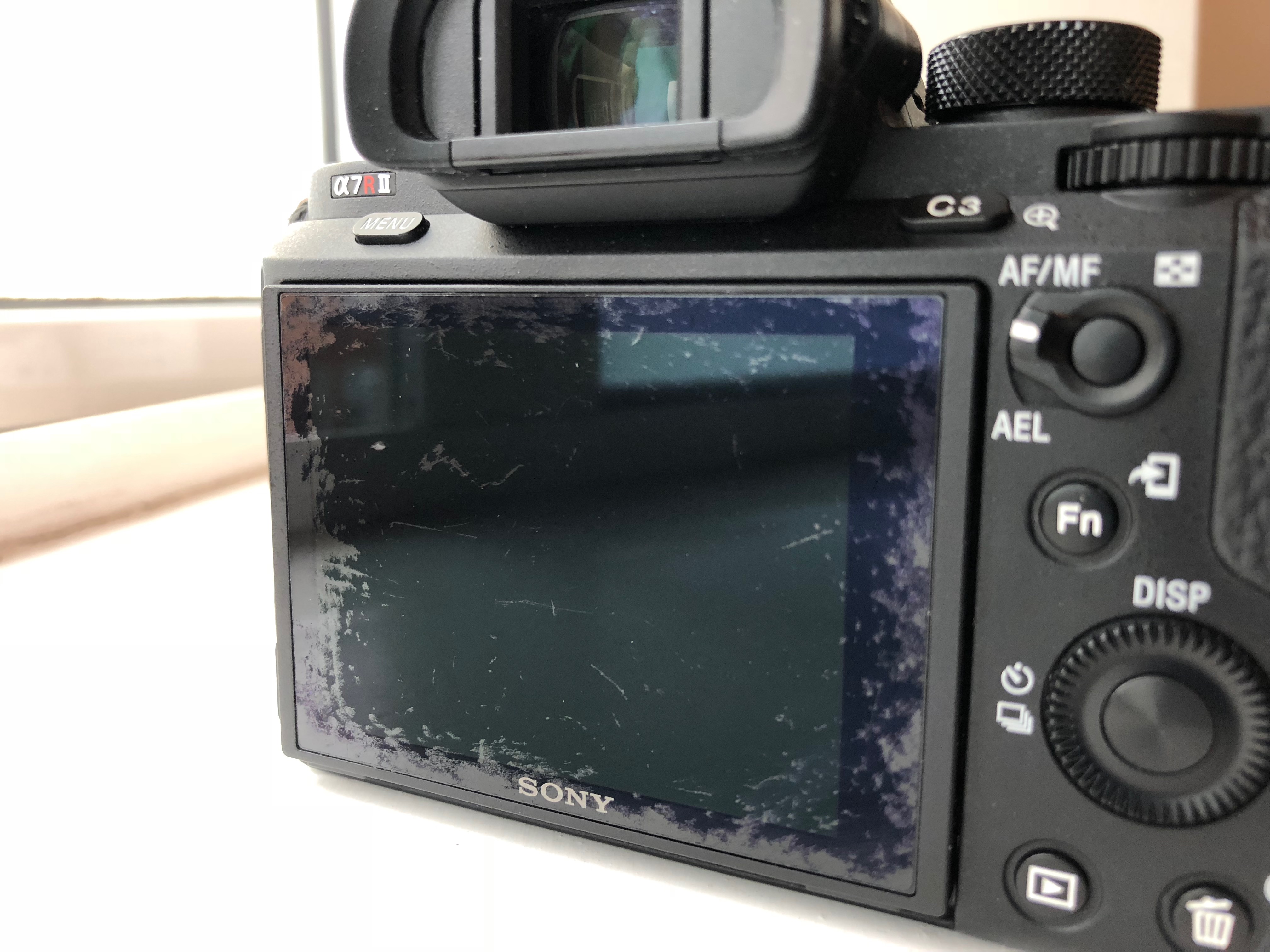

I’m a big Sony camera fan, and I’ve been using an A7 for the past few years. Recently I noticed the rear LCD was showing a lot of patchy discolouration.


It was starting to get very noticeable and distracting, and was only getting worse.

It turns out the camera has a built-in screen protector, and it’s this that is prone to delamination – the LCD underneath isn’t affected. Fortunately it’s possible to remove the protector.

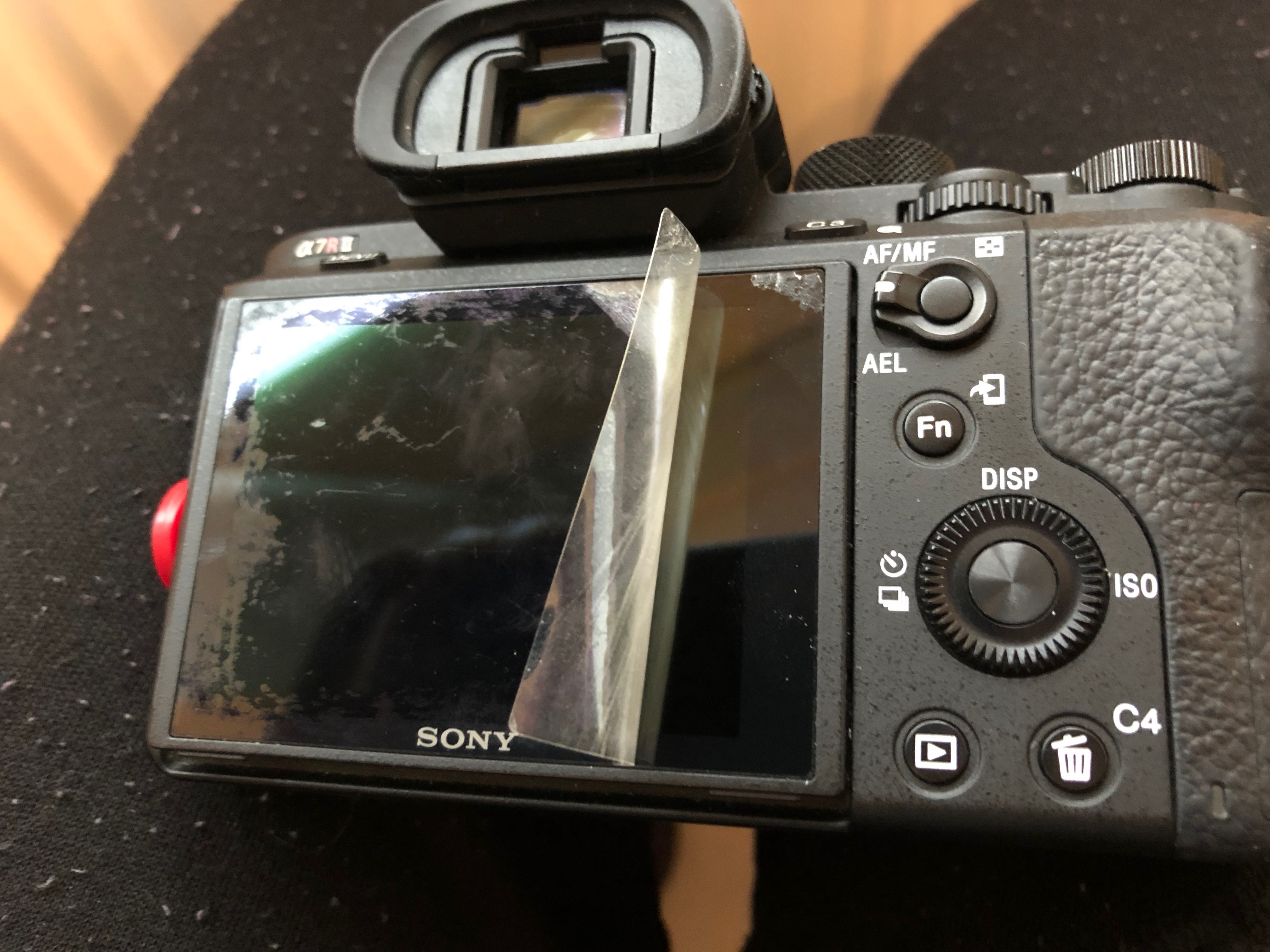

The original is stuck in place with some fairly strong glue and I used a razor blade with some gentle pushing to lift a corner. From there you can peel back just enough to get your fingernail under, and the rest can be worked free. Make sure not to pull the LCD off!


Note the mark in the top right corner is glue from the protector. This wiped clean with an alcohol wipe.

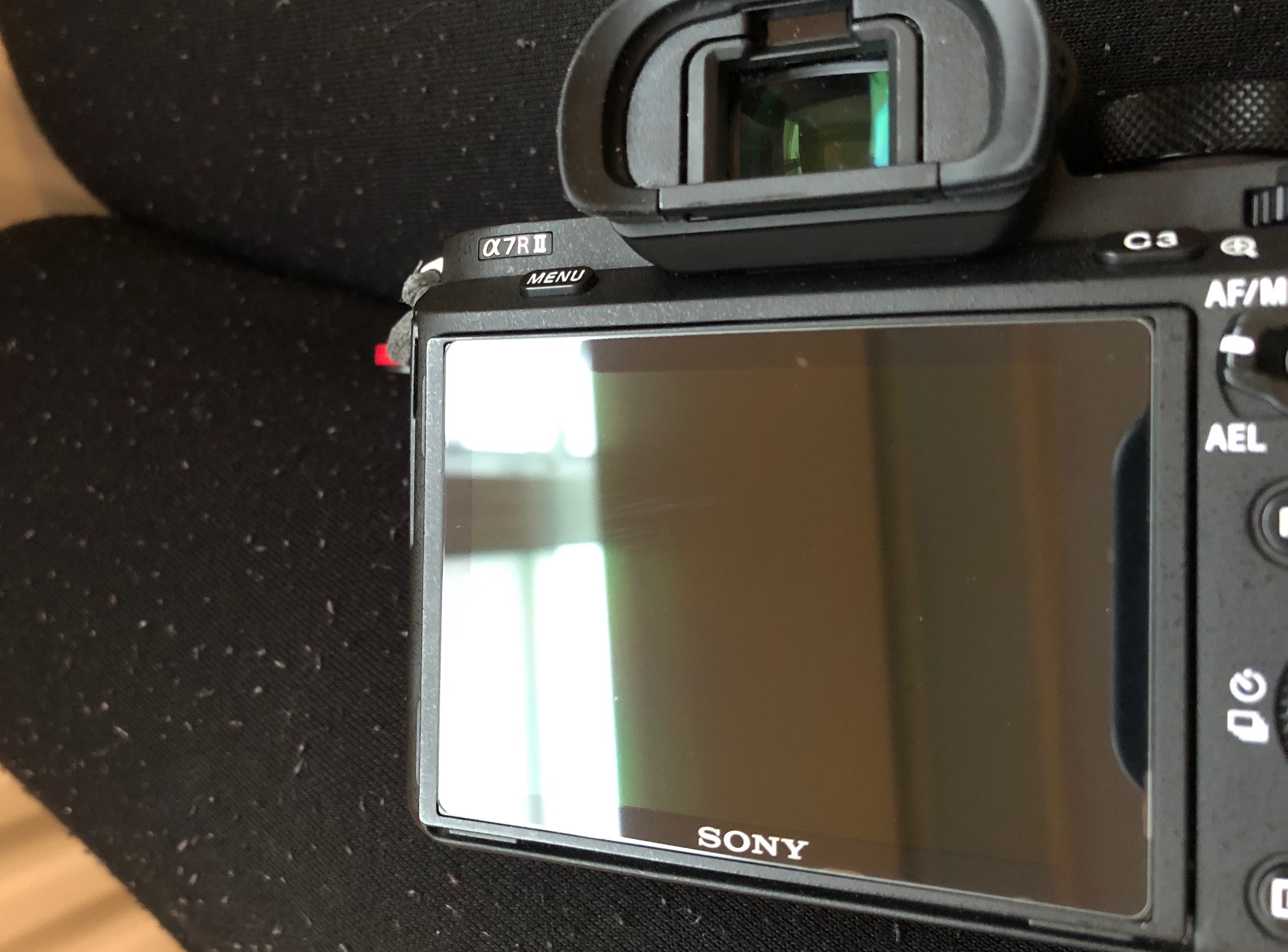

Once removed I replaced it with an Afunta A7 screen protector. It’s a bit thicker than the original (it says it’s actually glass), but fits nicely. The end result is a big improvement:
